Sprockets for Rohloff SPEEDHUB 500/14. The 15, 16 and 17 tooth sprockets are reversible, while the 13 tooth version is designed for small wheeled bikes.
Sprockets for Rohloff SPEEDHUB 500/14. The 15, 16 and 17 tooth sprockets are reversible, while the 13 tooth version is designed for small wheeled bikes.
Rohloff

Rohloff Speedhub Reversible Splined Sprocket in Silver

£17.99 £18.99 5% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

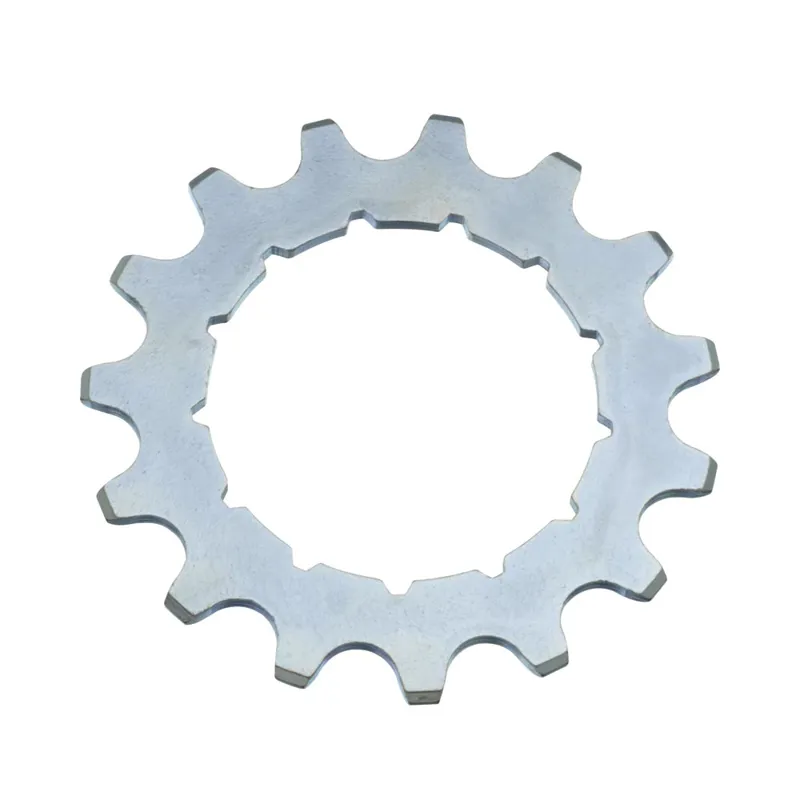

Rohloff Speedhub Reversible Splined Sprocket in Silver

Brand:Rohloff

Code:huro-spln-sprcktsSIL

Sprockets for Rohloff SPEEDHUB 500/14.

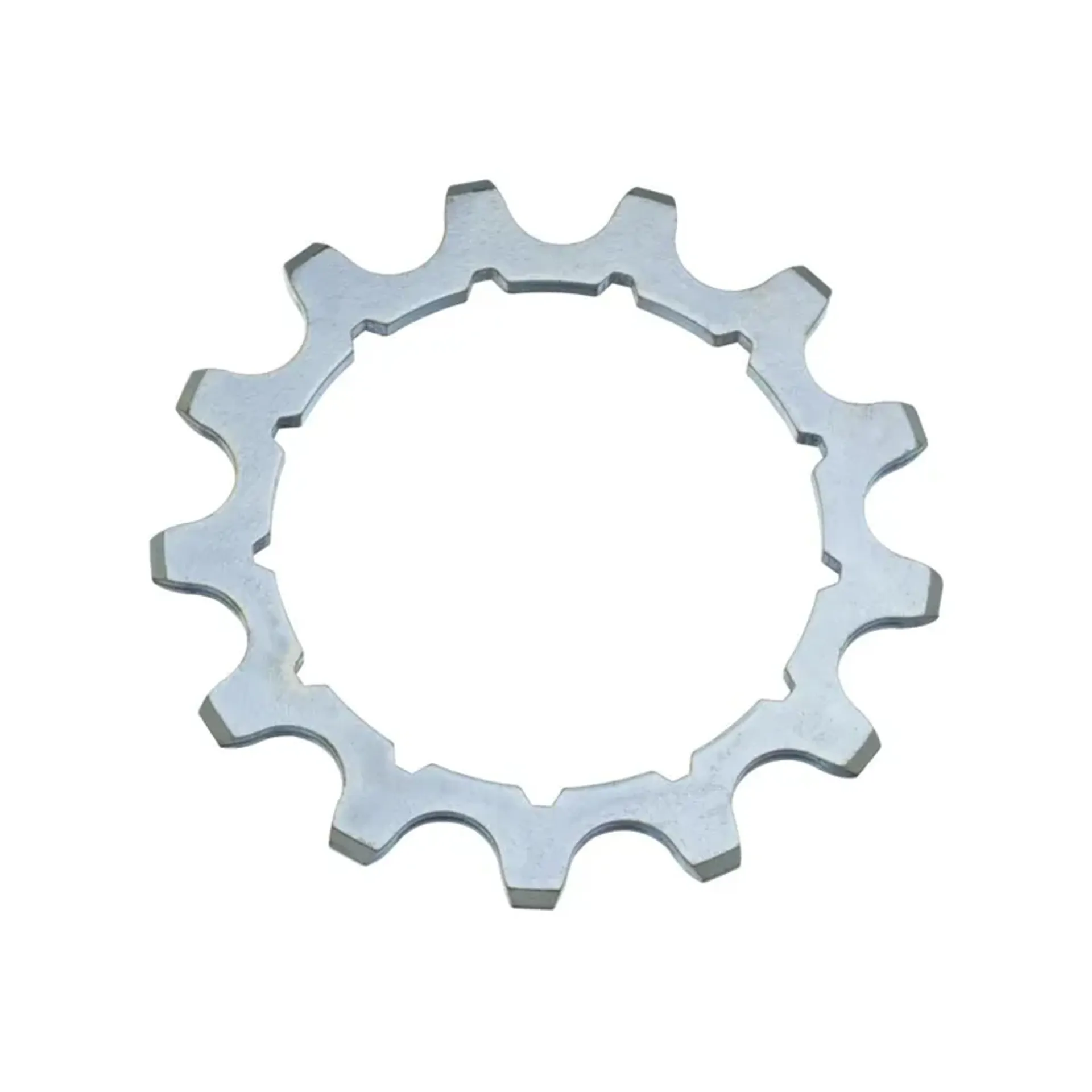

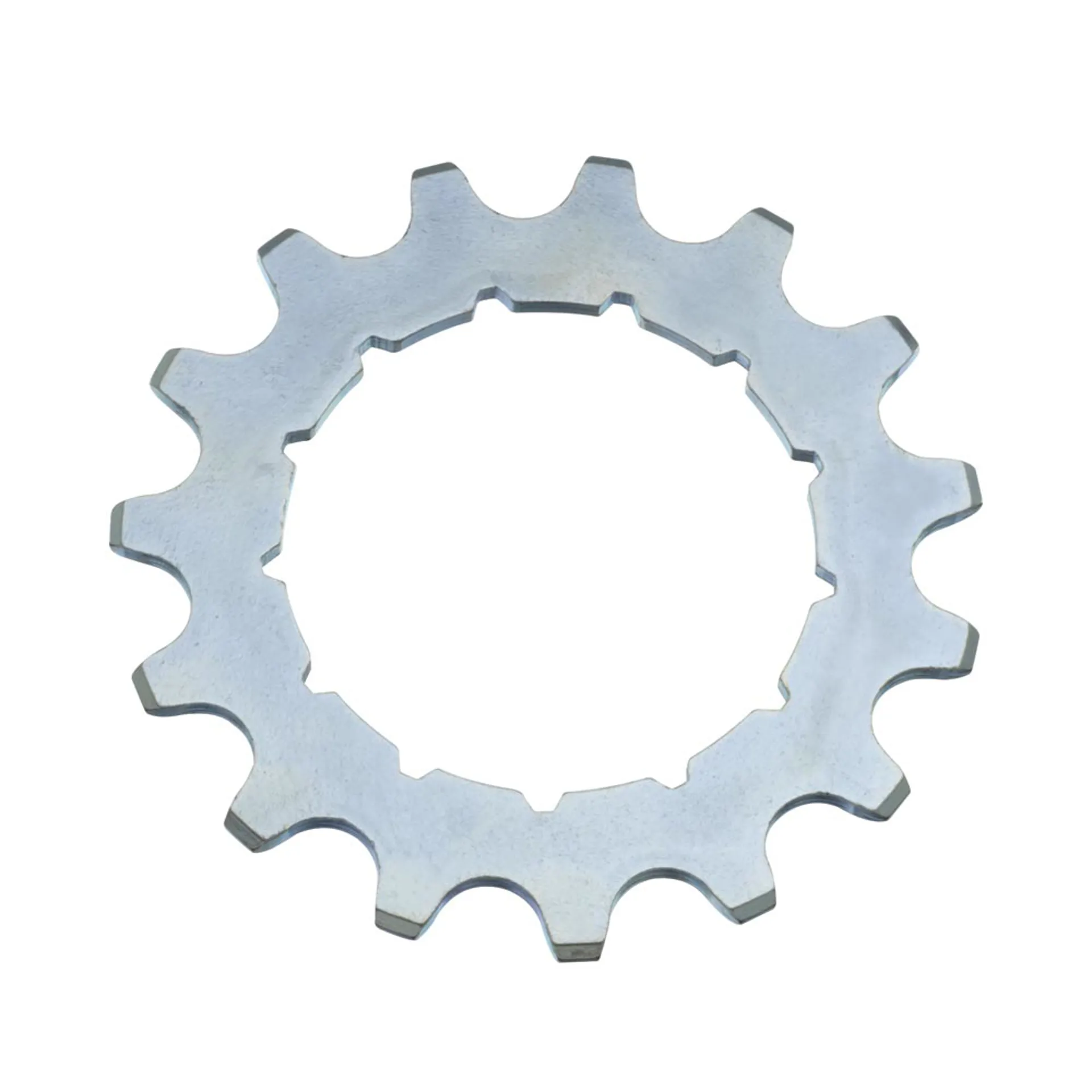

The Rohloff SPEEDHUB 500/14 comes fitted with a 16 tooth reversible sprocket. The 15, 16 and 17 tooth sprockets are reversible and can be used from both drive sides. For use on small wheeled bicycles (e.g. 51cm (20"), folding bikes and recumbents), a special 13 tooth sprocket is required. This version uses a different chain line (58mm instead of 54mm) and is not reversible. A special Rohloff sprocket tool is required for removal.

The SPEEDHUB 500/14 is designed to handle heavy loads encountered during competition, with maximum torque loads in extreme conditions reaching 250Nm on the crank. To protect the gear unit, the chainring/sprocket factor must not drop below 1.9. For tandem bicycles or riders weighing over 100kg, a chainring/sprocket factor of 2.5 must be maintained.

Features:

  • 15, 16 and 17 tooth sprockets are reversible for use on both drive sides
  • 13 tooth sprocket designed for small wheeled bicycles (51cm (20"))
  • Requires special Rohloff sprocket tool for removal
  • Supports high torque loads up to 250Nm
  • Maintains specific chainring/sprocket ratios for gear unit protection
Technical Information
  • Material
    Steel
  • Compatibility
    Rohloff Speedhub
  • Available sprocket sizes
    13T, 14T, 15T, 16T, 17T, 18T, 19T, 21T
  • Chainline options
    53mm, 55mm, 57mm, 58mm
